Operation Video Guide
Features
- Metal shell cover, durable and wear-resistance
- Day and night vision with IR LED (night visibility up to 10 meters)
- Allow remote viewing video and record from any internet connection
- Lightweight and space-saving for convenient use
- Easy to install and apply due to its user-friendly design
- It is waterproof, suitable for outdoor use
- Supportive for both PC and mobile phone usages, ensuring monitoring anywhere you like
Specifications
| Model | QD520 | |
| Camera | ||
| Image Sensor | 1/4” 1Megapixel progressive scan CMOS | |
| Effective Pixels | 1280(H) x 720(V) | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | Auto/Manual 1/3(4)~1/10000 | |
| Min. Illumination | Color: 0. 1Lux/F1.2, B/W: 0.01Lux/F1.2,0Lux (IR on) | |
| S/N Ratio | More than 50dB | |
| Camera Features | ||
| Max. IR LEDs Length | 10m | |
| Day/Night | Auto(ICR) / Color / B/W | |
| Backlight Compensation | BLC/ HLC/ DWDR | |
| White Balance | Auto/Manual | |
| Gain Control | Auto/Manual | |
| Noise Reduction | 3D | |
| Privacy Masking | Up to 4 areas | |
| Lens | ||
| Focal Length | 3.6mm | |
| Max Aperture | F1.8(F2.0/F1.8) | |
| Focus Control | Manual | |
| Angle of View | H: 70°(114°/46°/) | |
| Lens Type | Fixed lens | |
| Mount Type | Board-in Type | |
| Video | ||
| Compression | H.264 / MJPEG | |
| Resolution | 720P(1280 x 720)/ D1(704 x576/704×480) /CIF(352 x 288/352 x 240) | |
| Frame Rate | Main Stream | 720P(1 ~ 25/30fps) |
| Sub Stream | D1/CIF(1 ~ 25/30fps) | |
| Bit Rate | H.264: 16K ~ 8192Kbps | |
| Network | ||

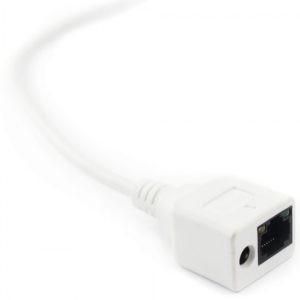

| Ethernet | RJ-45 (10/100Base-T) | |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour | |
| ONVIF | ONVIF Profile S | |
| Max. User Access | 10 users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| P2P | iPhone, Android Mobile App | |
| General | ||
| Power Supply | DC12V 1A | |
| Power Consumption | <4W | |
| Working Environment | -30℃~+60℃, Less than 95%RH | |
| Dimensions | Φ90mm x 90mm | |
| Weight | 0.25Kg | |
| Package Dimensions | Φ120mm x 95mm | |
| Package Weight | 0.35Kg | |
| Approvals | CE FCC RoHS | |
Details
Package Includes

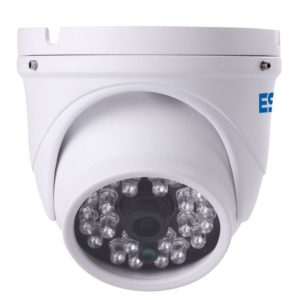

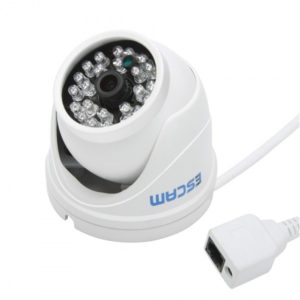

- 1 x HD IP Security Camera

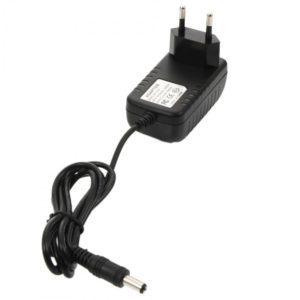

- 1 x 12V 1A Power Supply
- 1 x Set of Mounting Screws
- 1 x Instruction Manual
- 1 x CD
User Manual
Note: You can click here to download software and manual of ESCAM QD series products.
