Safe, easy, and fun to fly, the Phantom 3 Standard makes it possible for everyone to reach for the sky. With an intuitive flight system, built-in camera, live HD view, and more, the Phantom 3 Standard gives you everything you need to fly.
Features
Aircraft |
Weight (including battery)1216 g
Max Ascent Speed5 m/s
Max Descent Speed3 m/s
Max Speed16 m/s (ATTI mode, no wind)
Max Altitude Above Sea Level6000 m
Max Flight TimeApproximately 25 minutes
Operating Temperature0°C to 40°C
Navigation systemBuilt-in GPS
|
---|---|

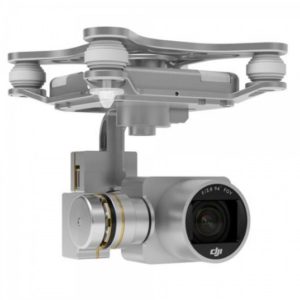

Gimbal |
Controllable RangePitch -90° to +30°
Angular Vibration Range±0.02°
|
Camera |
Sensor1/2.3” Effective pixels:12 M
LensFOV (Field Of View) 94° 20 mm (35 mm format equivalent) f/2.8
ISO Range100-3200 (video) 100-1600 (photo)
Electronic Shutter Speed8s -1/8000s
Image Max Size4000 x 3000
Still Photography Modes
Video Recording Modes
Max.Video Bitrate40 Mbps
Supported File Formats
Supported SD Card TypesMicro SD Card 8 GB included
Operating Temperature0°C to 40°C
|
Wi-Fi Video Link |
Operating Frequency2.400 GHz – 2.483 GHz
Max Transmission DistanceFCC: 1000 m; CE: 500 m (outdoors and unobstructed, aircraft’s altitude at 400 feet (120 m))
Transmitter Power (EIRP)FCC: 27 dBm; CE: 20 dBm
|

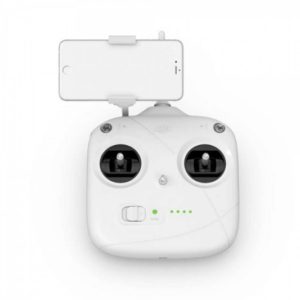

Remote Controller |
Operating Frequency5.725 GHz – 5.825 GHz, 922.7 MHz – 927.7 MHz (Japan)
Max Transmission DistanceFCC: 1000 m; CE: 500 m (outdoors and unobstructed, aircraft’s altitude at 400 feet (120 m))
Operating Temperature0°C to 40°C
Battery2600 mAh LiPo 18650
Transmitter Power (EIRP)
Working Voltage600 mA @ 3.7V
Charging PortMicro USB
|
Charger |
Voltage17.4 V
Rated Power57 W
|
Intelligent Flight Battery ( PH3-4480 mAh-15.2 V ) |
Capacity4480 mAh
Voltage15.2 V
Battery TypeLiPo 4S
Energy68 Wh
Net Weight365 g
Max Flight TimeApproximately 25 minutes
Operating Temperature-10°C to 40°C
Max Charging Power100 W
|
App / Live View |
Mobile AppDJI GO
EIRP100mW
Live View Working Frequency2.4GHz ISM
Live View Quality720P @ 30fps (depending on conditions and mobile device)
LatencyLow Latency Video (depending on conditions and mobile device)
Required Operating Systems
Recommended Devices
|
- Automatic video editor that helps you create a new movie in seconds
- User-friendly interface for controlling the camera and flight settings
- Live map and radar that tracks your Phantom 3 Standard as it flies
- Full flight telemetry including current speed, altitude, and distance
- Flight logs to record and remember your best moments
- Fly for up to 25 minutes on a single charge
Specifications
Suit Version Type | RTF |
Remote Distance | 1km |
Flight Time | 25 Minute |
Material | PC |
Weight | 42.89oz / 1216g |
Color | White |
Dimensions | (11.41 x 11.41 x 7.09)” / (29 x 29 x 18)cm (L x W x H) |

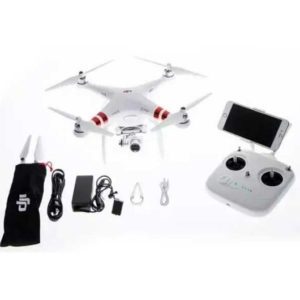

Package Includes

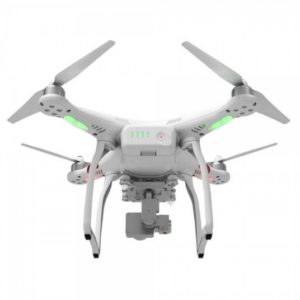

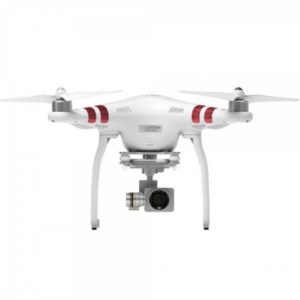

- 1 x DJI Phantom 3 Standard Version RC Quadcopter
- 1 x Transmitter
- 1 x Balance Charger
- 1 x HD Camera
- 4 x Blades
- 1 x Cable Kit
